JTW Astronomy

Trident GTR - 50% Deposit - Preorder Special Offer - Free Shipping - Delivery Before 31st January

Trident GTR - 50% Deposit - Preorder Special Offer - Free Shipping - Delivery Before 31st January

Regular price €2.747,50 EUR
Regular price Sale price €2.747,50 EUR
Sale Sold out
VAT included where applicable. If ordering from outside the EU please check your import tax rules.

Building on the success of the Trident P75. This listing is a 50% deposit. The mount will be delivered within 3 months, balance due before shipping. Free crating & shipping.

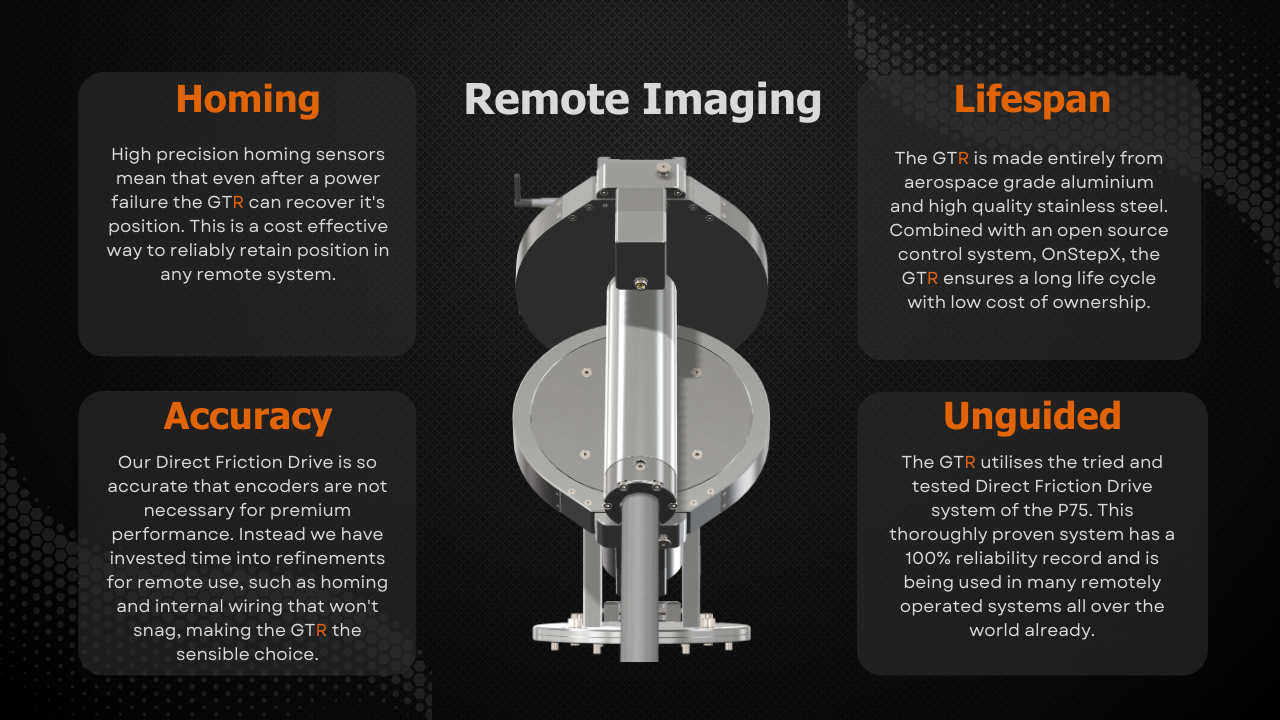

The Trident GTR, like the original, is optimised for remote imaging. Thanks to Direct Friction Drive technology it delivers world class performance without needing expensive encoders, precision optical homing assures safe positioning after a power loss. There is no mount that even comes close to this payload or performance in this price class.

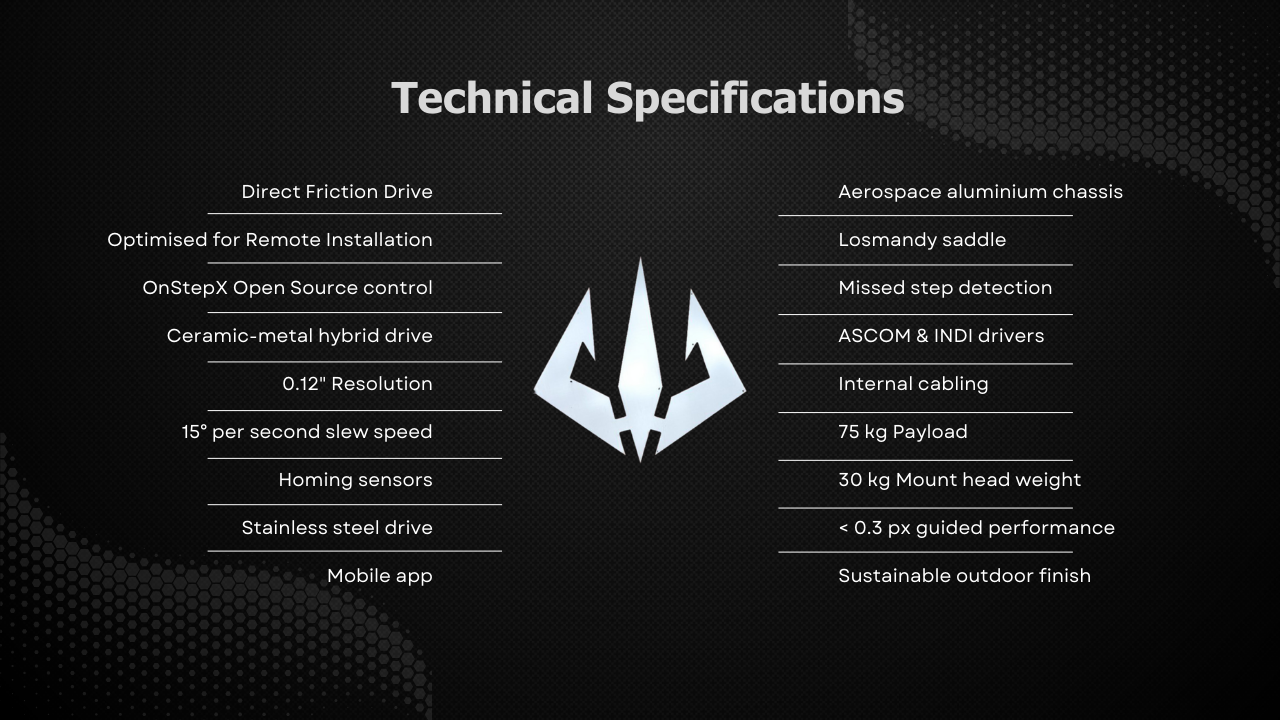

Specifications-

  • 75 kg photographic payload*
  • 30 kg mount head weight, includes 1x 10 kg stainless steel counterweight
  • Direct friction drive, no reduction rollers, yields a textbook sinewave for periodic error
  • Slow and gentle 16 minute periodic error easily handled by PEC sensor
  • Ceramic-metal hybrid drive
  • USB/WiFi/Ethernet connectivity
  • Officially supported open source OnStepX control system
  • JTW Manticore controller
  • Optional sensor array for correction of dual axis tracking according to ambient conditions, GPS position and precision PPS time
  • Hardware precision optical homing
  • Magnetic failsafe brake
  • Preloaded precision roller bearing
  • Sealed for life, maintenance free design
  • 0.12" Resolution
  • 10° per second maximum slewing speed by default. Unlockable to 20° per second
  • On-the-fly changes to microstepping for fast slewing or fine tracking
  • Missed step detection - advanced electronics use the motors own coils as a pseudo-encoder
  • StealthChop™ silent running, no more stepper motor chirping
  • 0° to 90° Latitude range
  • ±5.0 Degrees of Azimuth adjustment for polar alignment
  • Aerospace aluminium and stainless steel construction
  • Sustainable metallic, textured powder coated finish
  • ASCOM and INDI drivers
  • Mobile app turns any mobile device into a smart hand pad
  • Optional deluxe wireless hand pad
  • Simplified setup two-stage setup procedure
    • Quick start (0.3"-0.5" RMS guiding, out of the box)
    • 9 point alignment model (0.15"-0.3" RMS guiding)
  • New Manticore v1.10.1 controller
  • Improved heavy-duty polar alignment system
  • Improved saddle, dual Losmandy/Vixen fittings & triple no-mark brass clamps

You can own this fantastic piece of engineering for only 5495,00 euros (includes 21% Dutch VAT). Preorder today and receive free worldwide shipping! This is approximately equivalent to a 10% discount on the GTS purchase price. The mount will be delivered within 3 months with the balance due before shipping.

*Maximum payload depends on more than just the total mass on the telescope, please contact us for advice if you are unsure.
